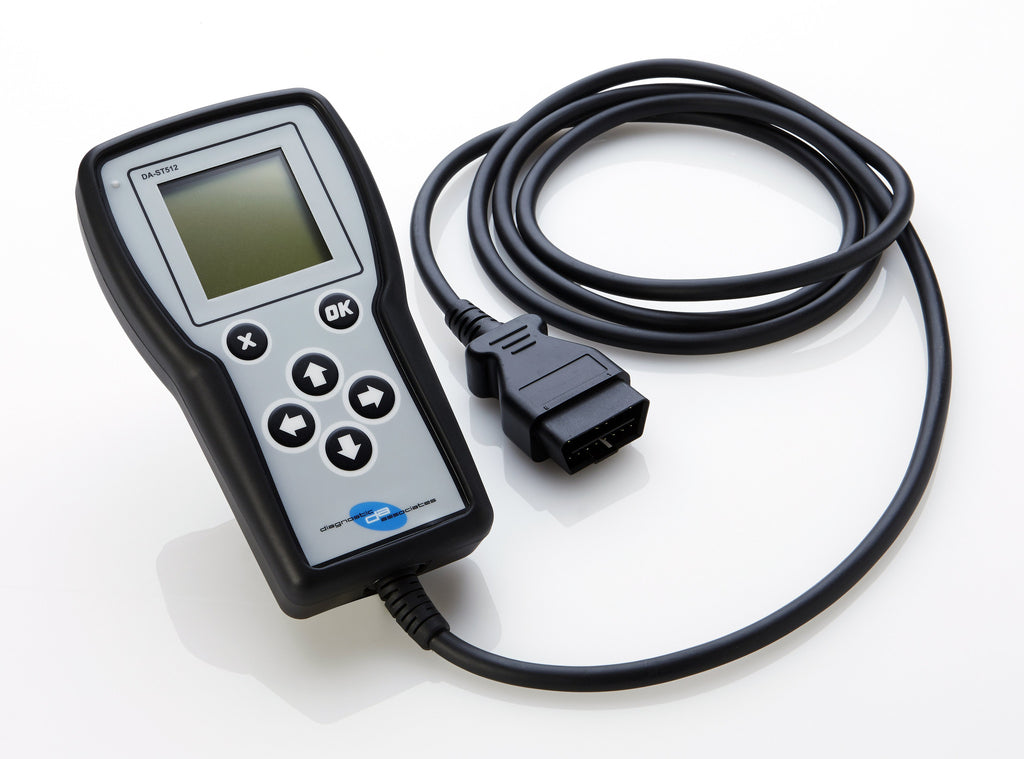

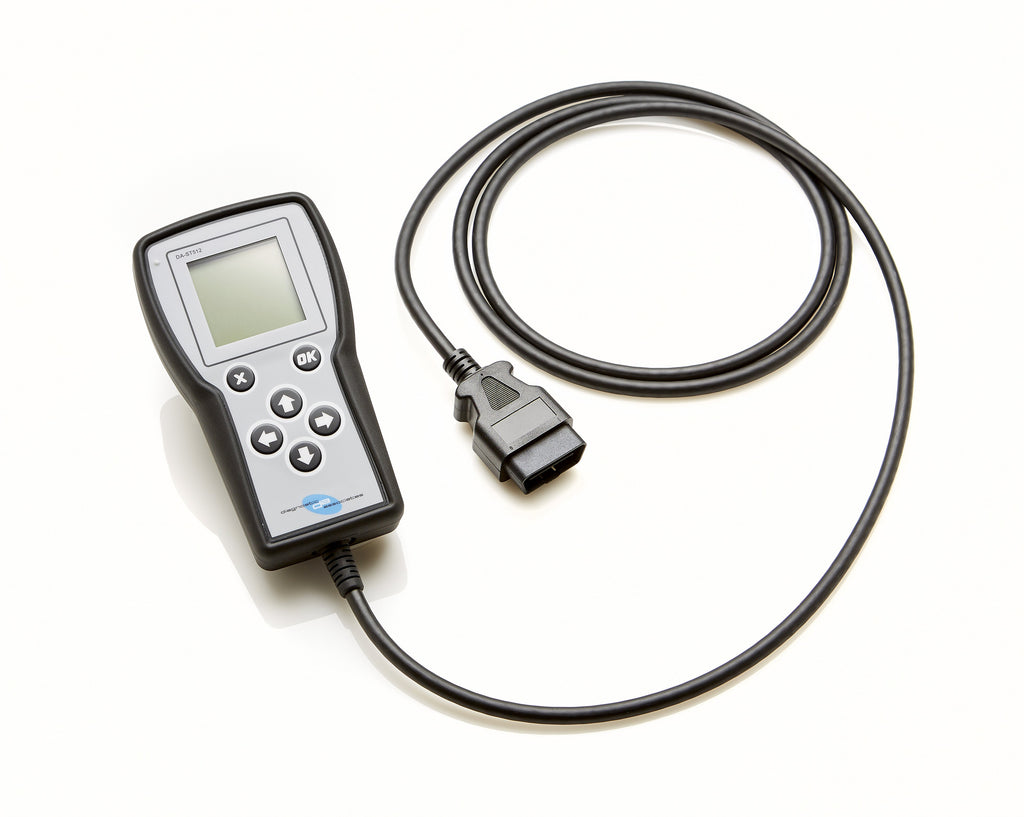

DA-ST512 Service Hand Held Device (Jaguar Land Rover for CAN based vehicles)

Diagnostic Associates Ltd

  • DA-ST512 Service Hand Held Device (Jaguar Land Rover)

    • The following applications operate stand alone without the need to connect to an approved system or PC. These applications, which are included in the price of this device, are for CAN based vehicles only (NOT DoIP) :-

  •  - DEF
  •  - DPFDR
  •  - EPBR
  •  - Oil Level
  •  - SIR
  •  - TM Toggle
  •  - TTM Toggle

Diagnostic Associates are the original manufacturers of this product.


Operates standalone
Also allows connection to the vehicle using JLR SDD diagnostic software via J2534
Covers CAN vehicle networks
1 metre USB Cable and rubber case cover included as standard
Easy to update for new vehicle and model years via PC (PC application and cable included)
Free to update for new vehicles and model years via laptop/PC application over USB


    Vehicle coverage (Where applicable) for the CAN (Not DOiP) based applications above, are as follows:-

     Land Rover Usage/Models:

    • Freelander 2 (L359)
    • Land Rover Discovery (L319)
    • Land Rover Discovery Sport (L550)
    • Range Rover (L322)
    • Range Rover (L405)
    • Range Rover Evoque (L538)
    • Range Rover Sport (L320)
    • Range Rover Sport (L494)

    Jaguar Usage/Models:

    • F-Type (X152)
    • F-Pace (X761)
    • XE (X760)
    • XF (X250)
    • XF (X260)
    • XJ (X351)
    • XK (X150)​

    What does the DA-ST512 do?

    The DA-ST512 connects directly to the vehicle OBDII diagnostic connector, powers from the vehicle and is then ready to use. The DA-ST512 can perform a vast number of applications, a selection of which is provided in the previous table. The full list of available applications to purchase is on the Applications page.

    The DA-ST512 can also be used as a SDD VCI device where it connects directly to the vehicle OBDII diagnostic connector, it then connects to the laptop via a USB cable for use with SDD. Once the J2534 DLL files are loaded, this product will allow normal operation with JLR SDD diagnostic software.  All protocol communication are possible with this device.

    How does the DA-ST512 operate?

    General Application

    On first use, register the device to unlock it.  This requires the download of the PC DA App Hub application on the Download page. The PC software will allow updates to current applications to the latest level.  The PC software will also allow new applications to be purchased and downloaded.  The PC software will allow applications to be trialled for a limited number of operations to allow the user to try the application before purchasing.

    J2534 VCI Application

    Download the latest J2534 DLL software files from the Download page and install on the SDD laptop.  Connect the device to the vehicle OBDII connector.  Connect the USB cable to the DA-ST512 and the SDD laptop.  Select the J2534 VCI application on the screen.  During communication with the vehicle the screen will display the message “connected” along with the vehicle battery voltage.

    How does the DA-ST512 get free updates for future Software Updates?

    The DA-ST512 can be updated for free simply and easily by connecting the DA-ST512 to an internet connected laptop/PC via the USB cable that is provided with each DA-ST512.

    The PC software update application is available to download from the Diagnostic Associates website Downloads page.  This application identifies what version of software is on the device for each of the purchased applications, and connects over the internet to determine whether a new version is available for update.  The device will then be automatically updated and ready to be used on the vehicle in a matter of minutes.

    Applications can be trialled for free using the DA App Hub, for a limited number of uses before the application then needs to be purchased – This is our try before you buy service.

    For Jaguar Land Rover franchised retailers the DA-ST512 collects feedback session data from the vehicles you connect to.  This data is sent back to Jaguar Land Rover when you connect to the App Hub software.  To ensure the data is sent back regularly after 50 vehicles the DA-ST512 prompts you to connect to the App Hub software.

    The matrix of vehicle and Model Year coverage per application can be found on our website Downloads page within the product user manual.

    Jaguar & Land Rover Vehicle Application List

    DA-ST512 Service Applications


    Description of Operation

    SIR – Service Interval Reset

    This application resets the service light and/or oil change reset depending on the vehicle. Note some vehicles have a manual procedure for this function.

    EPBR – Electronic Park Brake Release

    Moves the electronic park brake to the mount position and then releases the brake callipers.

    J2534 VCI Gateway mode

    Once the J2534 DLL files are loaded, this product will allow normal operation with JLR SDD Diagnostic software tool. All protocol communication is possible with this device.

    This VCI is to the DA-VINA specification.

    TTMT – Tight Tolerance Mode Toggle

    Toggles between tight tolerance mode and customer mode on the vehicle to allow steering or chassis alignments.

    DPFDR – DPF Dynamic Regeneration

    The DPFDR application allows the vehicles DPF dynamic regeneration process to be undertaken to clear the DPF of soot build up.

    Oil Level Measurement Displays current engine oil level instantaneously on screen with a bar graph and actual levels.
    Diesel Exhaust Fuel (DEF) Allows the Diesel Exhaust Fluid (DEF or AdBlue®) level to be constantly monitored, and displays the amount required to refill the tank. It also provides service functions related to the DEF tank and Selective Catalyst Reduction (SCR) system.
    TM Toggle – Transport Mode Toggle The Transport Mode Toggle application allows the vehicle to be placed in and out of Transport mode including speed limit and air suspension depending on vehicle variant.
    DTC Read and Clear The DTC Read and Clear application with snapshot and extended data performs DTC read from ECUs on the high speed CAN bus, the low speed CAN bus and MOST via the diagnostic gateway. DTCs can be cleared globally or by ECUs. Snapshot and extended data for DTCs is also read and saved to file on the SD card.
    EOBD Scan Tool The DA-ST512 EOBD Scan Tool Application supports the following diagnostic protocols and EOBD services: CAN (ISO 15765), 5-Baud Wakeup (ISO 9141), Key Word 2000 (ISO 14230)




    Further Applications Are Available

    The list above covers the basic approved applications available for the Service DA-ST512. For more details on other additional applications available to purchase have a look at the Applications page on this site.
