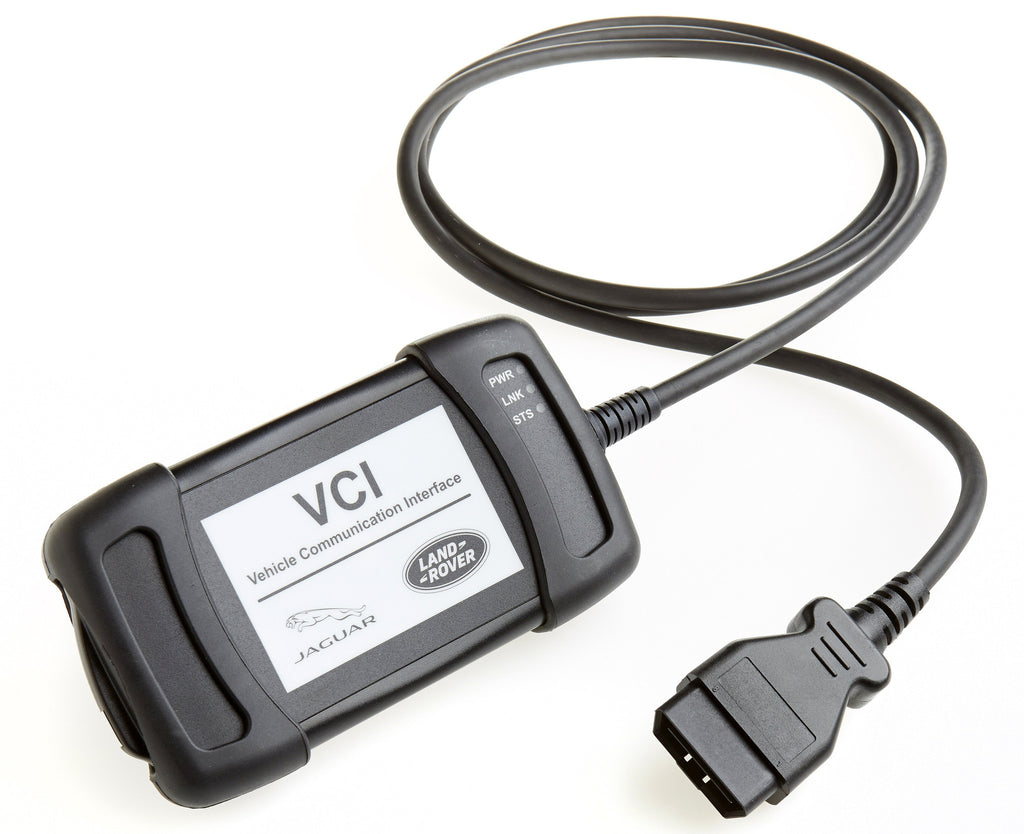

JLR VCI (Jaguar Land Rover Approved SAE J2534 Pass-Thru Interface)

Service Tool


Overview

  • Jaguar Land Rover Approved device
  • Replacement for JLR SDD VCI’s
  • Covers CAN, MultiCAN, ISO9141 and SCP Vehicle Networks
  • Suitable for Legacy, Current and Future Vehicles
  • 2m USB Cable as standard included
  • Easy to update for J2534 new functionality updates

What does the JLR VCI do?

The JLR VCI connects directly to the vehicle OBDII (Diagnostic) connector, it then connects to the laptop via a USB cable for use with SDD. Once the J2534 DLL files are loaded, this product will allow normal operation with JLR SDD Diagnostic Tool. All communication is possible on with this device.

 How does the JLR VCI operate in J2534 Mode?

The JLR VCI is simple and easy to use.  Drivers are available to install with JLR SDD DVD 142.  Connect the J2534 device to the vehicle OBDII connector (the device powers from the vehicle).  Connect the 2m USB cable to the JLR VCI and the other end to the SDD Laptop.  The (PWR) LED will turn solid red to show the JLR VCI is powered.  During communication with the vehicle the Status (STS) LED will flash green.

How does the JLR VCI get updated for future Software Updates?

Periodically JLR will release updates to its products’ drivers and software. These updates are necessary to either release further device functionality or to resolve field issues.

The updating of the drivers and software is handled by the diagnostic test application which will install the updates on request.

If problems are experienced during device use, always make sure that the latest device software and drivers have been installed.



Vehicle Coverage:

The JLR VCI is suitable for use with all JLR vehicle models with the following exceptions:



Flash programming of Engine Control Modules (ECMs) on XJS and pre-2003 XJ and XK models (AJ16, AJ26, AJ27 engines).

Simultaneous logging of ECM and TCM datalogger signals on 2006my Range Rover



Note: For customers within the territories of China, Hong Kong, Macau and Taiwan please visit our distributor Zhiche Automotive Technologies http://www.zhiche-autotech.com/  to purchase the JLR VCI product.



£385.00
